Description

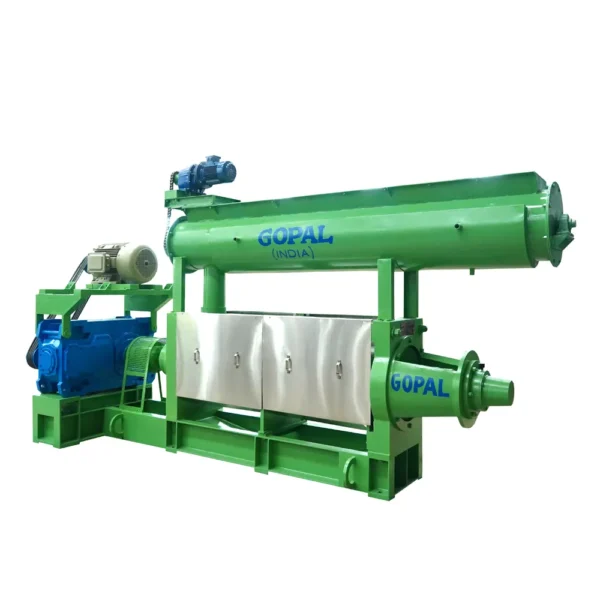

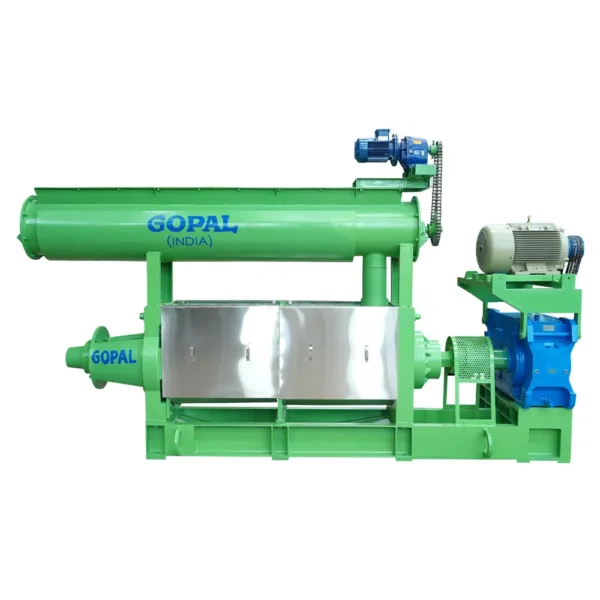

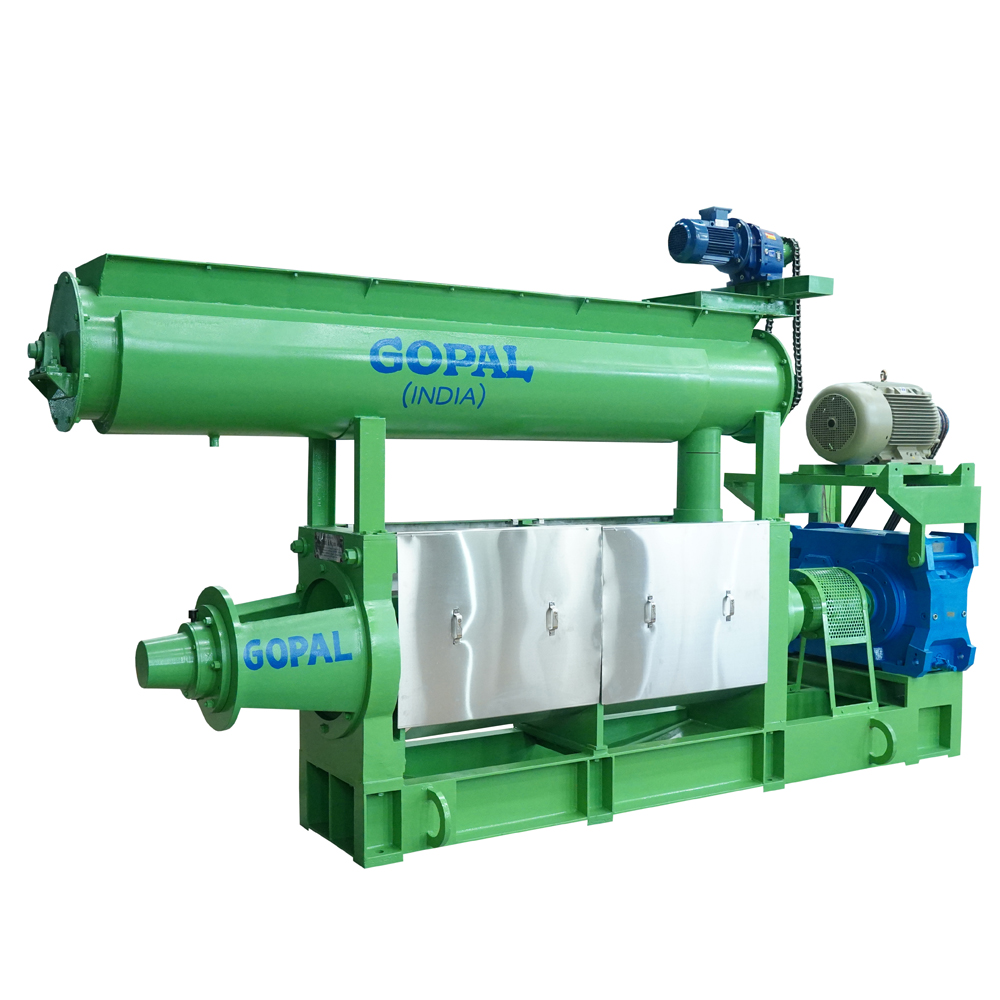

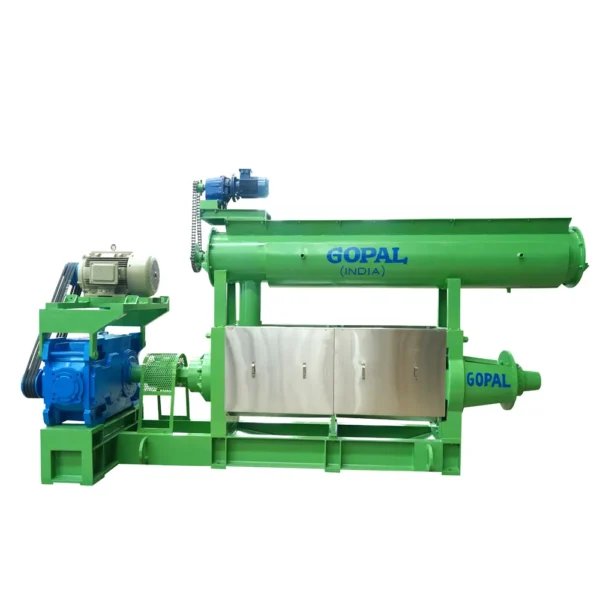

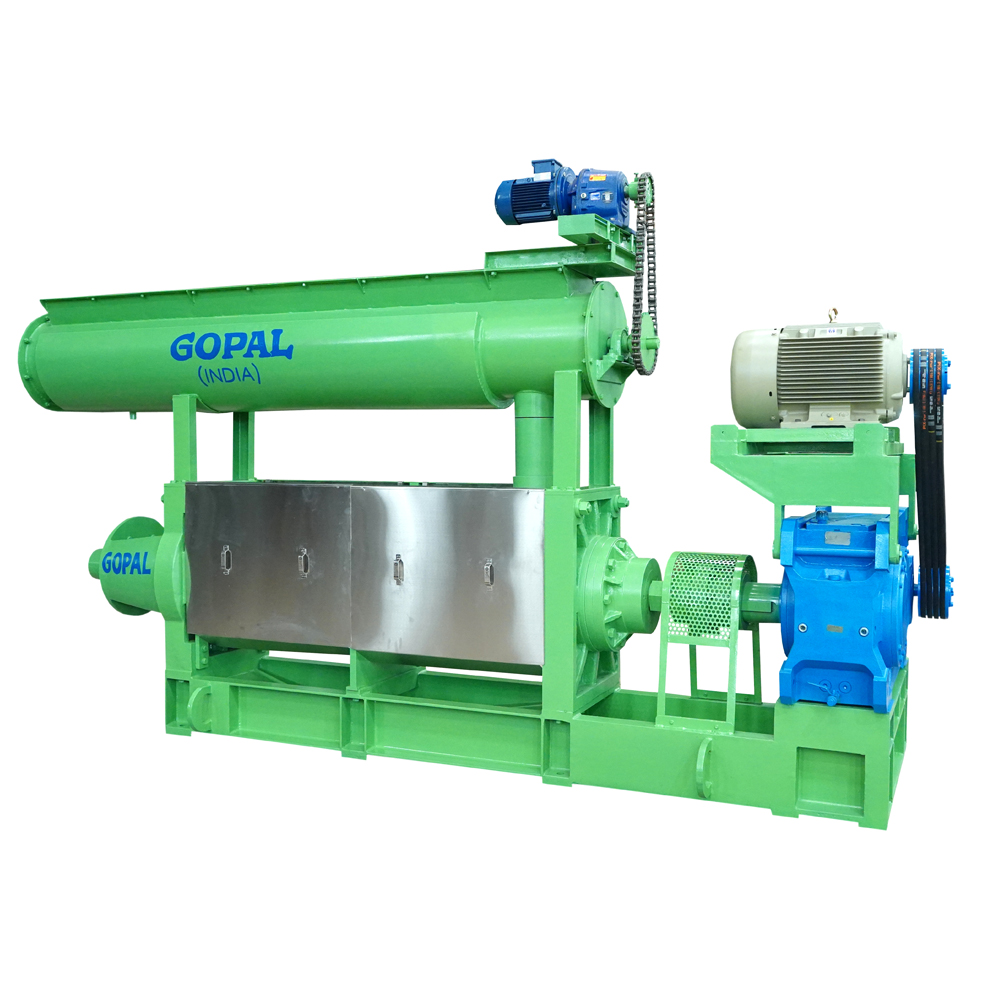

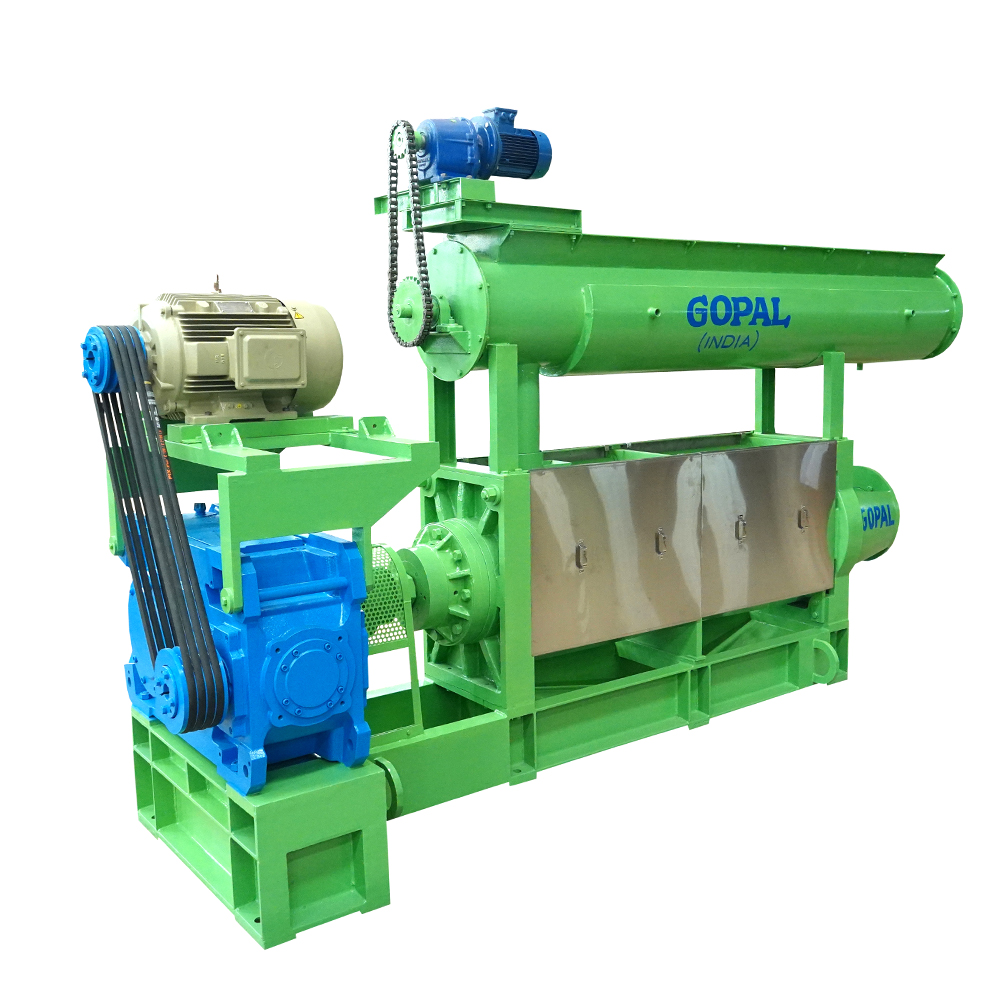

The Double Chamber Oil Expeller is designed for full pressing of oil seeds and nuts, producing both crude oil and high-quality press cake. This model combines efficiency, durability, and performance at a competitive investment, making it ideal for small-scale oil production units.
Key Features:
Versatile Seed Compatibility
-
Processes multi-seeds.
-
Capable of crushing multiple seed varieties for maximum flexibility
Robust Construction
-
Mild steel fabricated base
-
Ensures strength and long-term durability
Advanced Gearbox & Worm Assembly
-
3 stage Independent Gear Box
-
Hard-faced worm assembly for maximum wear resistance
-
Main worm shaft can be withdrawn without disturbing the gearbox
Efficient Chambers & Kettle Design
-
Two Horizontal fitted steel fabricated chambers
-
Long kettle with safety valve and pressure gauge
-
Optional round kettle with accessories available
-
Adjustable cake thickness for operational flexibility
Performance & Maintenance
-
Produces superior oil and cake quality
-
Low maintenance design for long-term productivity
Technical Specifications:
-
Capacity: 10 – 12 TPD*
-
Expeller Motor: 3 Phase, 40 HP, 1440 RPM
-
Horizontal Cooker Motor: 3 Phase, 3 HP Gear Motor, 1440 RPM
Why Choose This Model?
- Perfect balance between investment & output
- Designed to meet international standards
- Built in India with world-class engineering precision
